TEHNIČKE SPECIFIKACIJE
Part No: 90NR0EB5-M005W0
Model Name: FA507NU-LP032
TTV: 2023-02-06
End of Production: 2024-12-31
EAN Code: 4711387419243
UPC Code: 197105419247
WEEE: 2.582
BASE UNIT: VSNR0EB5-BU0200

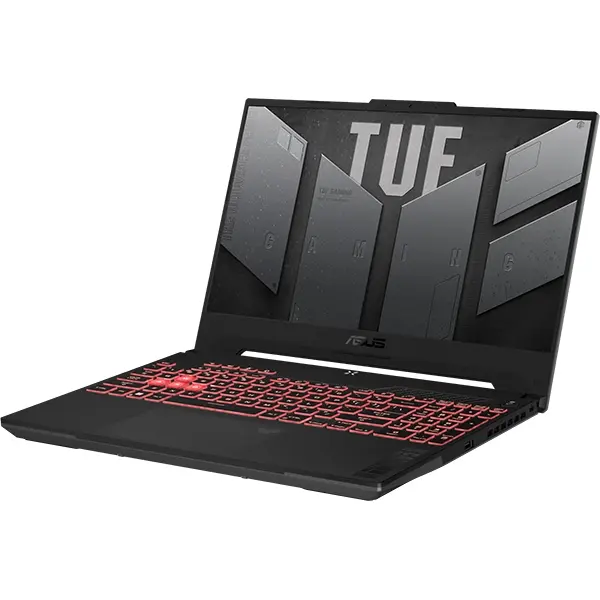

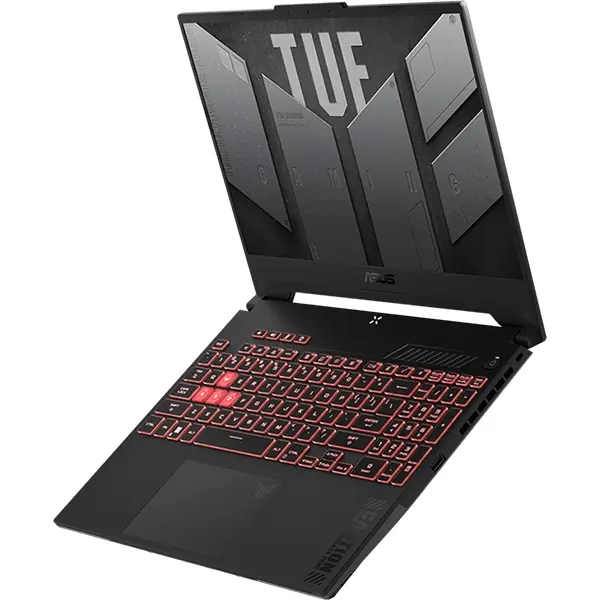

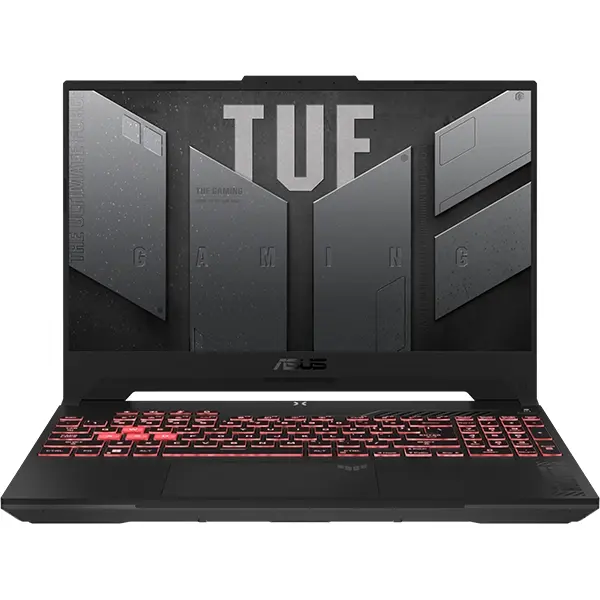

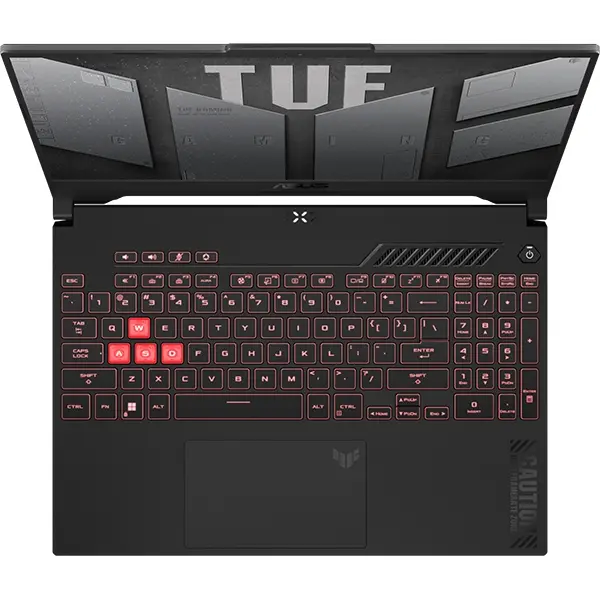

Marketing Name: ASUS TUF Gaming A15
Color: Mecha Gray
Dimension (W x D x H): 35.4 x 25.1 x 2.24 ~ 2.49 cm (13.94in x 9.88in x 0.88in ~ 0.98in )
Weight: 2.20 Kg ( lbs)
Processor: AMD Ryzen 7 7735HS Mobile Processor (8-core/16-thread, 16MB L3 cache, up to 4.7 GHz max boost)
Discrete/Optimus: MUX Switch + NVIDIA Advanced Optimus
Graphic: NVIDIA GeForce RTX 4050 Laptop GPU
Graphic: Wattage    2420MHz* at 140W (2370MHz Boost Clock+50MHz OC, 115W+25W Dynamic Boost)
Graphic: Memory    6GB GDDR6
IGPU: AMD Radeon Navi2 Graphics
Panel Size: 15.6-inch
Resolution: FHD (1920 x 1080) 16:9
Refresh Rate: 144Hz
Viewing Angle: 170
Panel Tech: Value IPS-level
Brightness: 250nits
Contrast: 1000:1
NTSC %: 72%
SRGB %: 100%
Adobe %: 75.35%
Anti glare: Anti-glare display
Adaptive-Sync technology: G-Sync
DIMM Memory: 8GB DDR5-4800 SO-DIMM *2
Total System Memory: DDR5 16GB
Memory Slot: 2x SO-DIMM slots
Memory Max.: 32GB
Multi-channel memory technology: Support dual channel memory
System Storage Installed: 1TB PCIe 4.0 NVMe M.2 SSD
M.2 slots support either SATA or NVMe: 2
M.2 SSD Support List: M.2 512GB PCIe SSD_x005F_x000D_, M.2 1TB PCIe SSD_x005F_x000D_, M.2 2TB PCIe SSD
Expansion Slot (includes used): 2x DDR5 SO-DIMM slots
LAN: 10/100/1000 Mbps
Wi-Fi/Bluetooth: Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth 5.3 Wireless Card (*Bluetooth version may change with OS version different.), Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth 5.2 Wireless Card (*Bluetooth version may change with OS upgrades.)
I/O Ports: 1x RJ45 LAN port, 1x Type C USB 4 support DisplayPort, 1x USB 3.2 Gen 2 Type-C support DisplayPort / power delivery / G-SYNC, 2x USB 3.2 Gen 1 Type-A
Display output: 1x HDMI 2.1 FRL
Audio: 1x 3.5mm Combo Audio Jack
Webcam: 720P HD camera
Mic: Built-in array microphone
Keyboard Type: Backlit Chiclet Keyboard 1-Zone RGB
Speakers: 2-speaker system
Audio Tech: AI noise-canceling technology, Dolby Atmos, Hi-Res certification, Support Microsoft Cortana near field/Far field
Operating System: No preinstalled OS
Security: BIOS Administrator Password and User Password Protection, Kensington Security Slot, Trusted Platform Module (Firmware TPM)
Battery: 90WHrs, 4S1P, 4-cell Li-ion
Fast charging: Recharge from 0-50% in 30 minutes
Power: 6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal
Ecolabels & Compliances: ENERGY STAR
Reparability Index (for FR): 8.2
